Channel Timecourse

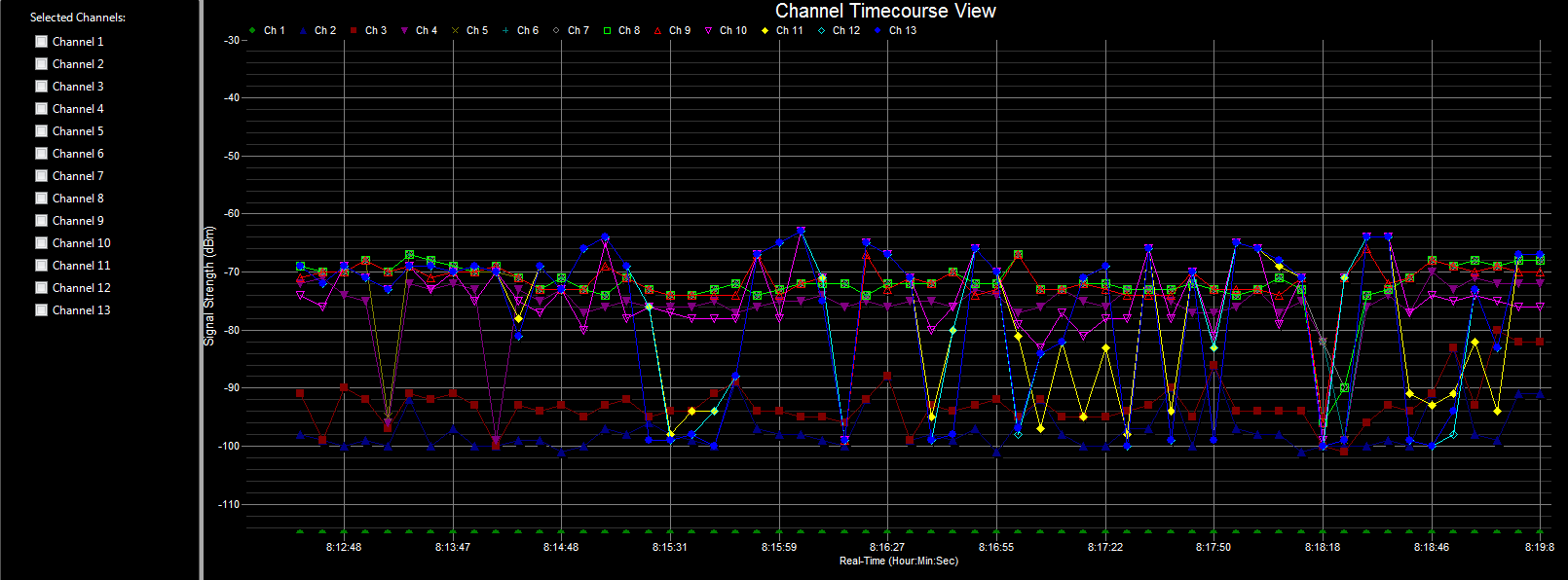

A “channel-centric” chart — useful for monitoring channels as a function of time. Each channel is represented by a different line — the X-axis is time and the Y-axis is signal strength. In this way one can clearly follow how RF interference affects different Wi-Fi channels over time. For “channel-centric” charts, the signal strengths of all frequencies used by a particular channel are summed, normalized and reported as one value.
